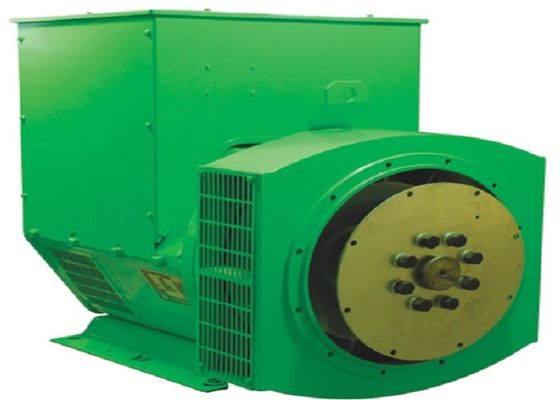

100% Copper Wire 70kw / 70kva 50hz Diesel AC Generator For DEUTZ Generator Set

100% Copper Wire 70kw / 70kva 50hz Diesel AC Generator For DEUTZ Generator Set

100% Copper Wire 70kw / 70kva 50hz Diesel AC Generator For DEUTZ Generator Set

Szczegóły Produktu:

Place of Origin: Wuxi,China
Nazwa handlowa: Werna
Orzecznictwo: CE,ISO9001,SASO
Model Number: WR274C

Zapłata:

Minimum Order Quantity: 5pcs
Cena: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Skontaktuj się teraz
Szczegółowy opis produktu

100% Copper Wire 70kw / 70kva 50hz Diesel AC Generator For DEUTZ Generator Set


Quick Detail:

Name

ALTERATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          70kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR274C

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Werna Type 1Phase 60Hz1800rpm Shaft Length Copper total weight Core length
      220V~240V / 1.0
KVA KW mm kgs mm
WR224C 37.5 37.5 668.2 20.55 130
WR224D 44 44 668.2 21.75 160
WR224E 50.0 50.0 758.2 23.74 180
WR224F 60 60 758.2 27.64 240
WR224G 75.0 75.0 673.3 31.04 300
WR274C 90.0 90.0 758 34.74 165
WR274D 100 100 758 38.74 205
WR274E 115.0 115.0 758 42.51 230
WR274F 135.0 135.0 873 46.21 285
WR274G 150.0 150.0 923 49.01 335
WR274H 156.3 156.3 963 54.21 375



Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
