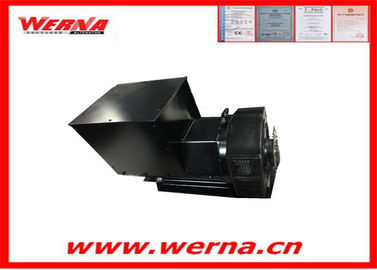

Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch

Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch

  • Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch
Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch
Szczegóły Produktu:
Place of Origin: Wuxi,China
Nazwa handlowa: WERNA
Orzecznictwo: CE,ISO9001,SASO
Model Number: WR274C14
Zapłata:
Minimum Order Quantity: 1 pcs
Cena: USD 1188/1 PIECE FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: ± 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Kontakt
Szczegółowy opis produktu
Wire: 100% COPPER WIRE TIF: <50
INSULATION: H PROTECTION CLASS: IP22
COLOUR: OPTIONAL WARRANTY: 2 YEARS
High Light:

self-excited ac generator

,

brushless ac alternator

Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch


Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

Optional

Feature

AC brushless synchronous excitation alternator


Power

80kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR274C16

manufacturer

Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.

  1. The winding varnished wire

The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

     2.Silicon Steel Sheet

The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

     3.Insulating paper

The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

     4.The main frame

The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

     5.Craft

The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

      6.Component

All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.



Technical data

Werna Type 1Phase 60Hz1500rpm   Case Spec.     Net Weight    Gross Weight
      110V~240V / 0.8
KVA KW L*W*H(mm) kgs kgs
WR224F 60 60 950*550*900 395 415
WR224G 70 70 950*550*900 395 415
WR274C 76 76 920*580*850 410 430
WR274D 88 88 1035*580*850 490 510
WR274E 110 110 1081*580*850 550  570
WR274F 135 135 1081*580*850 550 570
WR274H 170 170 1400*700*900 860 880



Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch 0

Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch 1Stamford Copy 100 kva Brushless AC Generator 110v - 240v With 2 / 3 Pitch 2
