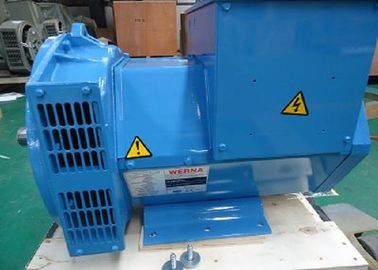

208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23

208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23

208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23

Szczegóły Produktu:

Place of Origin: Wuxi,China
Nazwa handlowa: WERNA
Orzecznictwo: CE,ISO9001,SASO
Model Number: WR224E16

Zapłata:

Minimum Order Quantity: 1 pcs
Cena: USD 880 / 1 PIECE FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: ± 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Skontaktuj się teraz
Szczegółowy opis produktu
Wire: 100% copper wire Color: Optional
Warranty: 2 years Life time: 20
Protection: IP22/23 Insulation class: H

208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23




Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

56 KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:

We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.
with long experience in manufacturing alternator / ac generator.

Generator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

1. Optional permanent magnetic ac alternator , provide invariable excitation in any situation.
2. Easy to be connected with power network or other ac generator. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial standards.

The advantage of our material:
1. Winding enamelled wire is 100% copper

2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.
3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.
5. All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.
6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. CE,ISO9001
7. Good after-sale service
Spare sparts
208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23

208V - 480V Three Phase Synchronous Generator 70kva 1800rpm IP23
