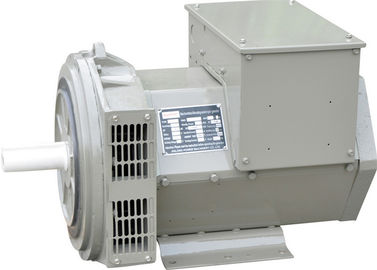

590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz

590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz

  • 590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz
590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz
Szczegóły Produktu:
Place of Origin: Wuxi,China
Nazwa handlowa: WERNA
Orzecznictwo: CE,ISO9001,SASO
Model Number: WR544F
Zapłata:
Minimum Order Quantity: 1 pcs
Cena: USD 526 FOB SHANGHAI / 1 PIECE
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Kontakt
Szczegółowy opis produktu
Warranty: 2 years Terminal: 12 / 6 Wire
Color: optional Wire: 100% full copper
Insulation class: H Material: Cold roll stator & 100 % copper
High Light:

permanent magnet alternator generator

,

permanent magnet synchronous generator

590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz







Quick Detail:

Name

ALTERRATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

         590kw

Certificate

CE,ISO9001,SASO





Specifications:

Model

WR544F

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC three phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

208-480V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H





Description:

  1. The winding varnished wire

The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

  1. Silicon Steel Sheet

The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

  1. Insulating paper

The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

  1. The main frame

The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

  1. Craft

The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

  1. Component

All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

  1. Rotor and stator

All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

  1. Test

All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of our factory should be tested by specialized Test Room.All the data such as wave form

voltage, rate,electric resistance and so on ,will show in specialized full-automatic testing machine,and can be printed into testing report of authorized edition.





Competitive Advantage:

1. 100% copper winding wire

2. In stock and fast delivery

3. Two year warranty

4. Best quality and competitive price

5. Two-time vacuum impregnation dipping

6. powerful quality control team

7. CE,ISO9001

8. Good after-sale service

Our workers

590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz 0

590 KW 738 KVA Permanent Magnet Alternator For Cummins Generator Set 60hz 1
