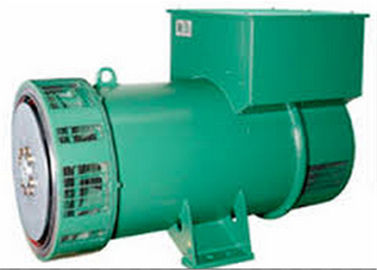

15.6 kva 3600rpm AC Brushless Alternator AC Indoor Electric Generator 12.5kw

15.6 kva 3600rpm AC Brushless Alternator AC Indoor Electric Generator 12.5kw

    • 15.6 kva 3600rpm AC Brushless Alternator AC Indoor Electric Generator 12.5kw
  • 15.6 kva 3600rpm AC Brushless Alternator AC Indoor Electric Generator 12.5kw

    Szczegóły Produktu:

    Place of Origin: Wuxi,China
    Nazwa handlowa: Werna
    Orzecznictwo: CE,ISO9001,SASO
    Model Number: WR162D

    Zapłata:

    Minimum Order Quantity: 5pcs
    Cena: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Kontakt
    Szczegółowy opis produktu
    Manufacturer: Wuxi City ,Jiangsu Prov ,China making alternators Rated Voltage: 190-454v
    Excitation: Brushless, self-excited, synchro Warranty: 2 years
    life time: more than 20 years Package: plywood
    High Light:

    brushless synchronous alternator

    ,

    brushless alternator generator

    15.6 kva 3600rpm AC Brushless Alternator , AC Indoor Electric Generator 12.5kw

    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    12.5KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110V~690V

    Frequency

    60Hz

    Speed

    3600RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H


    Description:
    1) Protection class IP23, insulation class H.
    2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
    3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
    4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
    5) The power factor ranges from 0.8 to 1.
    6) Telephone influence factor is less than 50, according to NTMA.
    7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
    8) Overload standard according to NEMA.
    9) All generator statore are wound to 2/3 pitch.

     Frequency And Voltage
    50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

    Insulation and Protection
    Insulation: H, Protection: IP22

    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

    Winding
    All generator stators are wound to 2/3 pitch

    Why to choose Werna Alternator/generator?
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
    15.6 kva 3600rpm AC Brushless Alternator AC Indoor Electric Generator 12.5kw 0
