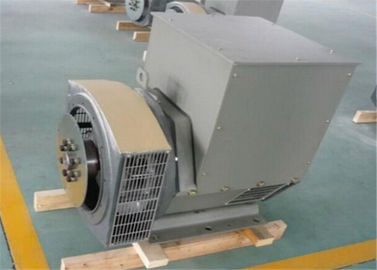

11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM

11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM

  • 11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM
11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM
Szczegóły Produktu:
Place of Origin: Wuxi,China
Nazwa handlowa: Werna
Orzecznictwo: CE,ISO9001,SASO
Model Number: WR162F
Zapłata:
Minimum Order Quantity: 5pcs
Cena: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Kontakt
Szczegółowy opis produktu
Wire: 100% copper wire Warranty: 2 years
Life time: 20 years Color: Optional
Protection: IP22/23 Insulation class: H
High Light:

self-excited ac generator

,

brushless ac alternator

11.8kw Brushless AC Generator With Class H For Cummins Generator Set / 3000 RPM

Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

          11.8kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR162F

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Quality Control Surveillance
11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM 0
11.8kw Working Of AC Generator With Class H For Cummins Generator Set 3000RPM 1
